Working with assortments of reinforcement - obtaining various information and calculations
About files with the extension .mpif
The file with the .mpif extension is a special installation file of the ModPlus (ModPlus Install File).
These files allow you to install and update all ModPlus components using the auto-update module in case you do not have access to the internet or modplus.org
CALL OPTIONS
- ModPlus menu
- ModPlus palette
- AutoCAD ribbon
- Command line: _mpArmature
ICON
RELATED NEWS AND ARTICLES
USING
The main plugin window is divided into two parts:
1. In the left part there are elements for selecting reinforcement (normative document, diameter, area, weight 1 pm, class of reinforcement)
2. The right part contains options for obtaining various information and calculations:Mass
It operates in two versions: calculation of the mass of a rod of a certain length or indication "m". The difference between the selected variant in the insertion of the result and the name in the table "Specification"
- Measure the length between two points - switch to AutoCAD to specify two points: First point:
Specify a point
Second point:
Specify a point. The distance between the specified points will be inserted in the corresponding field- Get the sum of lengths from entities - switch to AutoCAD for selecting entities: Select lines, polylines, circles, arcs, ellipses or splines:
It is necessary to select several primitives. The sum of the lengths of the selected primitives will be inserted into the corresponding fieldResult to table / Mass of one meter to table - switch to the AutoCAD to select a table:
Select table:
Select AutoCAD table
Select cell:
Select the cell in the selected table. In the indicated cell there will be inserted mass of the rod or mass of one running meter of the selected reinforcement. When inserting in running meters the next to the right of the indicated cell will be inserted "kg/m"Name to table - switch to the AutoCAD to select a table:
Select table:
Select AutoCAD table
Select cell:
Select the cell in the selected table. In the indicated cell, the name of the selected reinforcement will be inserted according to the normative document.Insert result and name - switch to the AutoCAD to select a table:
Select the "Specification" table:
Select the AutoCAD table. The table should correspond to the table "Specification"
Select the "Name" cell:
Select the cell in the selected table. In the indicated cell, the name of the selected reinforcement will be inserted according to the normative document. In the penultimate cell in this line (which corresponds to the column "Weight, unit kg"), the weight will be insertedAdd diameter symbol (Ø) - adding the diameter symbol when inserting the reinforcement name into the table.
Areas
This section allows you to obtain the cross-sectional area of the rods of the selected reinforcement with the number of rods or with the step of the rods (per 1 meter)

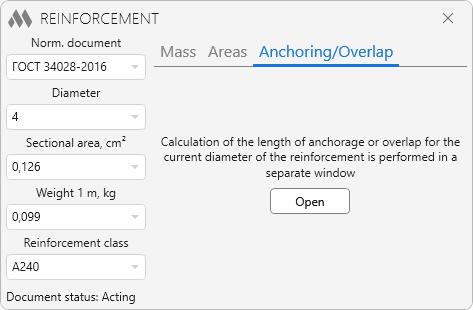

Anchoring/Overlap
Calculation of the length of anchoring and/or overlap with the possibility of obtaining the result in MS Word.
Download
Files with the file extension .mpif is used to install or update components and plugins in case of lack of access to the internet! ModPlus is installed using the web installer -
-
2021 Year
AutoCAD: Reinforcement 1.2.2.0 (10.01.2021)
- New Added the ability to insert a diameter symbol when inserting a name into a table.
2020 Year
AutoCAD: Reinforcement 1.2.1.0 (04.11.2020)
- Improved Service update.
AutoCAD: Reinforcement 1.2.0.0 (14.09.2020)
- New The calculation of the length of the anchoring or overlap is placed in a separate window.
AutoCAD: Reinforcement 1.1.9.0 (23.08.2020)
- Improved Added value 2.0 for the coefficient α when calculating the length of anchoring.
2019 Year
AutoCAD: Reinforcement 1.1.8.0 (18.09.2019)
- Fixed a typo in the report calculate the length of anchoring.
AutoCAD: Reinforcement 1.1.7.0 (04.05.2019)
- Amended, taking into account the updating of the STB 1704-2012.
AutoCAD: Reinforcement 1.1.6.0 (07.02.2019)
- Added display of status of the normative document.
2018 Year
AutoCAD: Reinforcement 1.1.3.0 (24.11.2018)
- ModPlusStyle styling.
AutoCAD: Reinforcement 1.1.1.0 (16.06.2018)
- Replacement of the main icons of the function with the addition of icons for the dark AutoCAD ribbon design theme.
2016 Year
AutoCAD: Арматура 1.0.4.0 (30.01.2016)
- Added remembering of the function selected values of the normative document, diameter and grade of rebar.
2015 Year
AutoCAD: Арматура 1.0.2.0 (24.06.2015)
- Faster export to calculate the length of anchoring in Word.
