Dwg base

13511

Dwg base

It's a free plugin!

  • Base of various blocks and drawings

    Call options

    • ModPlus menu
    • ModPlus palette
    • AutoCAD ribbon
    • Command line: _mpDwgBase

    Icon

    32x32px 16x16px dark 32x32px dark 16x16px

    Related news and articles


    Using

    The plugin can work with two bases: ModPlus base and User base, which are selected in the drop-down list in the upper left part of the window.

    1

    MODPLUS BASE

    2

    In the left part of the plugin window there is a list of blocks and drawings available in the base. The list has a tree structure and can be sorted using the Alphabetical Sort option.

    When you select an item in the list, the list of elements available for insertion is displayed in the field in the middle upper part of the window. When selecting an individual element, the table of element properties is filled in the field in the lower part of the window, and in the field in the upper right part of the window you can see an image of the element.

    Files containing blocks and drawings are not downloaded when the plugin is installed. Therefore, the first time an element is inserted, a dialog box appears with a suggestion to download the source file:

    3

    In the lower part of the plugin window there is a button for inserting an element, as well as options for customizing the insertion:

    Rotation – allows you to specify the rotation angle when inserting an element

    Insert as block – this option is available for drawings, it allows you to insert a drawing as a block

    Layer: – allows you to select the layer to insert from the drop-down list of project layers

    Close the window after inserting – if this option is enabled, the plugin window will be closed after inserting an element.

    USER BASE

    The first time you start the user base, a dialog box appears prompting you to create a user base file pointer:

    4

    If you select user base, additional tools for adding and managing user elements appear in the plugin window.

    5

    By default, user base files are saved to the ModPlus Data/DwgBase directory (the full path is specified in the corresponding field in the upper left part of the plugin window). Using folder, you can specify a different path to store the folder with the user base. You can restore the default value of the path to the user base storage folder with folder refresh.

    To add a block or a drawing to the base you should click plus and make a choice in the opened dialog box:

    6

    When selecting a block, the following dialog box opens:

    7

    After clicking crosshairs gps you should select the block in the current document. After that the dialog box will look as follows:

    8

    The Recommendations is located in the upper part of the dialog box, which opens the window with the basic requirements for the blocks to be added. There are tooltips opposite the options and fields in this window.

    If the current file in which the block was selected is located in a subdirectory of the ModPlus Data/DwgBase directory, then the Current File option should be checked. Otherwise, it is necessary to Select a file in the above mentioned directory or Create a new file using the corresponding buttons. If the block to be added is a three-dimensional one, you should check This is a 3D block option.

    Then the following fields should be filled in:

    • Name – the name of the block that is displayed in the plugin window
    • Description – brief description of the block
    • Normativ document – the source regulatory document. If there is no document, the field should be left empty
    • Added by – name and surname of the person who added the block
    • Source – source where the block was taken from in case the adder is not the author of the block.
    • Path – conditional path to the block in the directory that forms the tree structure. Each conditional subdirectory should be separated by a "/"

    The Add attributes for specifications option allows you to add attributes for specifications to the block. Attribute values can be changed in the block properties after it is inserted using this plugin. After enabling the option, a table becomes available where you can fill in the default attribute values.

    9

    After clicking the Accept, the block will be added to the list of User base blocks.

    The window for adding a drawing is similar to the window for adding a block:

    10

    If the drawing file is already in a subdirectory of the ModPlus Data/DwgBase catalog, click Select and specify the drawing you are looking for. If the drawing is in a subdirectory of the ModPlus Data/DwgBase catalog and is currently open, check the Current file checkbox. If the drawing file is not in a subdirectory of the ModPlus Data/DwgBase directory, it can be copied using the Copy.

    Next, it is necessary to fill in the fields similar to those in the add block window. After clicking the Accept, the drawing will be added to the list of User base drawings.


    To manage the current User base, you can use the dwg User Base utilities wrench:

    11

    In the left part of the opened window there is a list of utilities located on separate tabs.

    Statistics

    12

    Allows you to display basic information about the User base: the total number of elements, including blocks and drawings, the number of dynamic and static blocks, the number of authors, the number of existing dwg-files used by the base, the number of invalid references to dwg-files.

    To get the information, you need to click Collect statistics.

    Change "Path" for multiple items

    13

    Allows you to batch change the "Path" value in the base catalog for the checked elements.

    To do this, you must check the required items in the selected group, and then specify the new "Path" in the field at the bottom of the window and click Accept.

    Edit "Source" and "Added by"

    14

    Allows you to batch change "Source" and "Added by" values for the checked elements.

    To do this, you should check the necessary items, and then specify new values in the fields at the bottom of the window and click Accept. If you do not need to change one of the values, the corresponding field should be left empty.

    Unused files

    15

    Unused files – files located in the ModPlus Data/DwgBase directory that are not referenced by any element in the bases (ModPlus base and User base).

    After clicking the Find unused files, a list of the corresponding files is displayed, which can be deleted using the Delete selected unused files button.

    Elements without a source file

    16

    Elements without source file – elements in the User base that refer to a non-existent source file.

    After clicking the Find items without source file, the list of the corresponding files is displayed, which can delete selected items using the Delete.

    Rename source file

    17

    To change the name of the source file, select the file in the list and enter a new name without extension in the field at the bottom of the window, then click Rename.


    If you want to add blocks and drawings from the User base to the ModPlus base, you need to send them to the modplus.org server. To do this, you need to use the corresponding upload.

    18

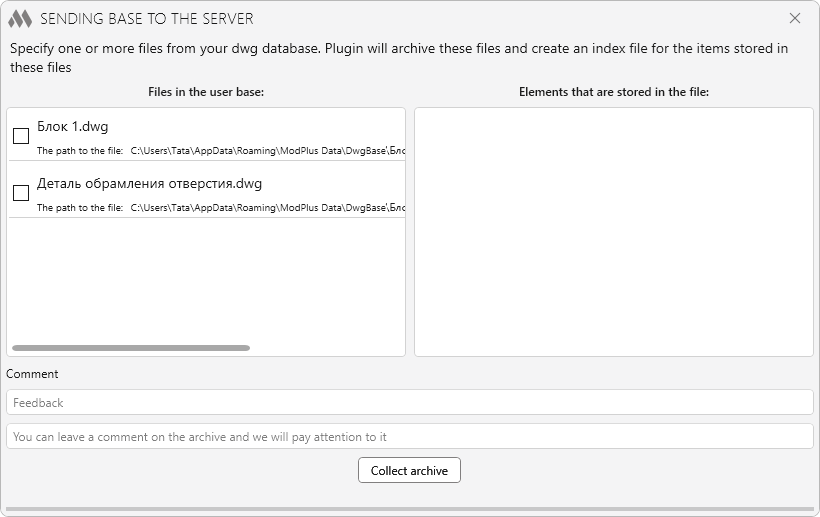

    The left part of the opened window contains the list of source files of the User base. When selecting a source file, the list of elements stored in this file appears in the right part of the window. The files to be sent should be checked. They will be collected in the archive for sending.

    In the Feedback field you should specify the sender's contacts (e-mail, link to social networks, etc.) in case you need to adjust the sent blocks (drawings).

    After clicking the Collect archive, the files will be added to the archive and three buttons will appear at the bottom of the plugin, allowing you to View archive, Delete archive or Send archive to server.

    After you send the archive to the server, the files are checked by a moderator and a decision is made to add the elements to the ModPlus base.

  • Change history for
    Year

    2023 Year

    AutoCAD: Dwg base 1.5.12.0 (12.05.2023)

    Fix
    Fixed a bug that caused an incorrect block/drawing to be added to the database if the "Current file" checkbox was checked in the add window.

    AutoCAD: Dwg base 1.5.11.0 (10.01.2023)

    Improved
    Removed "Top of all windows" property from the plugin window.
    Improved
    Added localized display for "Blocks" and "Drawings" groups in the tree.

    2021 Year

    AutoCAD: Dwg base 1.5.9.0 (22.07.2021)

    Improved
    Adaptivity of window components was improved.
    Fix
    Fixed a bug that caused AutoCAD to crash when adding a block to a custom database.

    AutoCAD: Dwg base 1.5.7.0 (15.07.2021)

    Improved
    The plugin window is made non-modal (does not block AutoCAD).

    AutoCAD: Dwg base 1.5.6.0 (03.04.2021)

    Improved
    Removed version checking of files added to the database.

    2020 Year

    AutoCAD: Dwg base 1.5.4.0 (09.11.2020)

    Fix
    Fixed "Field not found" error.

    AutoCAD: Dwg base 1.5.2.0 (16.09.2020)

    Fix
    Fixed a bug with inserting blocks with a UCS.

    AutoCAD: Dwg base 1.5.1.0 (15.09.2020)

    New
    Added the ability to specify the storage folder for the user base of blocks.
    Fix
    Fixed error checking the file for storing the block for valid version 2010 instead of 2013.

    AutoCAD: Dwg base 1.4.0.0 (06.02.2020)

    Removed the restriction of using files 2013 version when adding blocks and drawings in the user database.

    2019 Year

    AutoCAD: Dwg base 1.3.0.0 (18.11.2019)

    Added alphabetical sorting.

    AutoCAD: Dwg base 1.2.0.0 (16.11.2019)

    Fixed "Method not found" when validating access to the internet.
    Method for sending user files to add to the public database is replaced with the ftp to http.

    AutoCAD: Dwg base 1.1.8.0 (04.05.2019)

    The transfer database directory to the folder to store user settings.

    2018 Year

    AutoCAD: Dwg base 1.1.7.0 (03.12.2018)

    The window of the plugin added a link to video instructions for working with the plugin.
    In the table properties of the block (drawing) added tooltips displaying the properties for comfortable reading long descriptions.
    Added field to specify feedback options when sending files to the server.

    AutoCAD: Dwg base 1.1.4.0 (02.12.2018)

    ModPlusStyle styling.
    Replacement of main function icons adding icons for dark themes the AutoCAD ribbon.
    The restriction on the version of the stored blocks, and drawings changed from 2010 to 2013.
