Call options
- ModPlus menu
- ModPlus palete
- AutoCAD ribbon
- Command line: _mpMultiRotate
Icon
Related news and articles
Description
Each selected entity will be rotated relative to the Z-axis with the center at a specified point - Left Bottom, Right Bottom, Left Top, Right Top or Center. The center of rotation is determined by the rectangle that describes the entity (Bounding Box)
Using
Select objects [Copy]:
Selecting objects.Copy:
When this item is selected, copies of the selected objects will be rotated. If you select this item again, the selected objects will be rotated.Rotation angle in degrees:
Enter the angle of rotation value in degrees. The number must be in the range from 1 to 359.Select a base point <Center> [Center/LBottom/LTop/RBottom/RTop]:
Selecting the center of rotation point:Center - the middle of the rectangle described around the object
LBottom - the lower-left corner of the rectangle described around the object
LTop - the upper left corner of the rectangle described around the object
RBottom - the lower right corner of the rectangle described around the object
RTop - the right upper corner of the rectangle described around the object
DownloadFiles with the file extension .mpif is used to install or update components and plugins in case of lack of access to the internet! ModPlus is installed using the web installer -
Change history forYear
2022 Year
AutoCAD: Multi rotate 2.0.0.0 (07.12.2022)

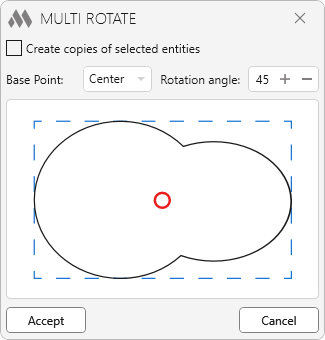

NewAdded settings window (instead of prompts in the command line).AutoCAD: Multi rotate 1.0.1.0 (07.04.2022)
ImprovedProhibit selecting entities on a locked layer. - Комментарии для сайта Cackle
