Built-in commands

Small commands built into the standard Modify tab on the ribbon. Built-in commands are added 100 milliseconds after the tab appears in a separate ModPlus panel. Commands are added to the panel depending on which elements are selected.

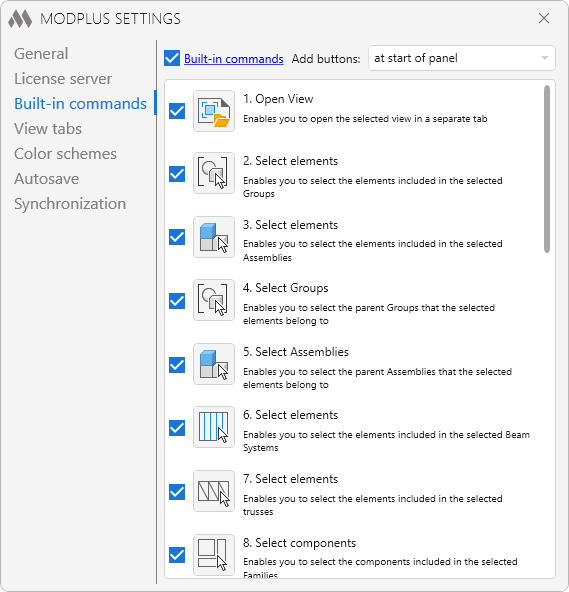

The addition of built-in commands can be disabled in the ModPlus settings window.

Open view

Enables you to open the selected view in a new tab. Displayed when viewports or section/elevation designations are selected.

Select elements (group)

Enables you to select all elements included in the selected groups. Groups are processed recursively - i.e. if a group contains nested groups, the elements of the nested groups will also be selected. Displayed when groups are selected.

Select groups

Enables you to select the parent Groups that the selected elements belong to. Displayed when selecting elements in groups.

Select elements (assembly)

Enables you to select all elements included in the selected assemblies. Displayed when assemblies are selected.

Select assemblies

Enables you to select the parent Assemblies that the selected elements belong to. Displayed when selecting elements in assemblies.

Select elements (Beam system)

Enables you to select the elements included in the selected Beam Systems. Displayed when Beam Systems are selected.

Select elements (Dimensions)

Enables you to select the elements of the current document referenced by the selected dimensions. Displayed when Dimesions selected.

Select components

Enables you to select the components (nested families) included in the selected Families. Displayed if there is at least one family with components among the selected families.

Select parent family

Enables you to select the parent families that contain the selected nested families. Displayed when nested families are selected.

Set to view

Enables you to set the Work Plane of the current element as the Work Plane of the current 3D View. Displayed when a single family is selected that is placed on the work plane.

SELECT REBARS

Enables you to select the Rebars included in the selected Structural Area Reinforcement or Structural Path Reinforcement. Displayed when selecting Structural Area Reinforcement and/or Structural Path Reinforcement.

Enables you to select the reinforcement included in the selected host elements. Displayed when selecting elements containing reinforcement.

SELECT HOST
