Last

96

Last

It's a free plugin!

  • Tracking and displaying the last hidden or last selected elements

    Call options

    • Renga main menu

    Icon

    32x32px 24x24px 16x16px

    Related news and articles


    Using

    Selected

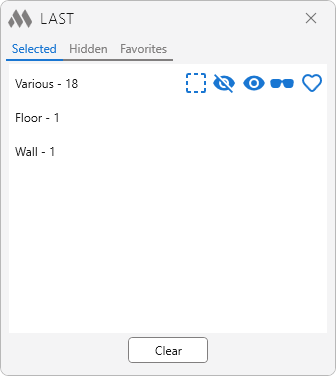

    This tab tracks the selected elements and assigns them to groups. Groups are added to the list from top to bottom (i.e., the most recently selected elements will be at the top of the list). If the selection of elements was interrupted or reset, a new group is added to the list. If all selected elements have the same type, the group will be displayed with the type name in the plugin window, otherwise the group will be displayed with the word "Various".

    1

    selection - selecting elements of this group
    eye off - hidden elements of this group
    sunglasses - isolating elements of this group

    Hidden

    This tab tracks and remembers hidden elements, which allows you to restore the visibility of only certain (groups of) elements, not all elements. If the hidden elements at a time have the same type, in the plugin window the group will be displayed with the type name, otherwise the group will be displayed with the word "Various".

    1

    2 - restores the visibility of elements in the group and removes the group from the list.

    The principle of the plugin is based on tracking changes in the current selection of elements - if the selected elements have become hidden, they are added to the list of the plugin. Due to the limited capabilities of the Renga API there are some cases of incorrect operation:

    • if you hide a host element that contains other elements (for example, a wall with windows), then only the host element will be listed in the plugin
    • if you call the standard "Show All" command, the list in the plugin window will not be cleared
    Download
    Files with the file extension .mpif is used to install or update components and plugins in case of lack of access to the internet! ModPlus is installed using the web installer
