Select similar

10972

Select similar

Attention! The plugin is purchased for the specified version of the Autodesk product!

To use the purchased license, use the Personal account of the ModPlus software installed on Your computer
Old price: 0.00 USD
6.60 USD

Try before you buy

Prices

Most of the plugins in the ModPlus software are free! But, approximately 30% of the plugins are paid. However, these plugins are distributed on the principle "Try before you buy" - which means that you can use these plugins in almost their full functionality and buy them only if you want!
  • Plugin allow you to select objects that are similar to sample objects from all objects in the drawing, or from a specific set

    Call options

    • ModPlus menu
    • ModPlus palette
    • AutoCAD ribbon
    • AutoCAD context menu
    • Command line: _mpSelSim; _MpSelSimSel; _MpSelSimSettings

    Icon

    32x32px 16x16px dark 32x32px dark 16x16px

    Using

    When AutoCAD loads, new items appear in the context menu:

    3

    Select similar (_MpSelSim)

    Select sample objects or[Settings]:
    You should select one or more entities, which will be the sample entities to search for such. The search will be performed on all entities in the drawing.

    Settings:
    Opens the plugin settings window (see below)

    Select similar from selected (_MpSelSimSel)

    Select sample objects or[Settings]:
    You should select one or more entities that will be sample entities to search for similar.

    Select objects among which to search for analogues:
    You should select the entities in which such entities will be searched

    Settings (_MpSelSimSettings)

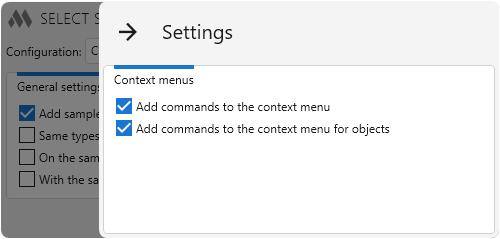

    Opens the plugin settings window:

    1

    2

    Save - Closing a window with saving settings

  • Change history for
    Year

    2022 Year

    AutoCAD: Select similar 1.6.1.0 (26.09.2022)

    Improved
    Skipping hidden entities when searching for similar entities.

    AutoCAD: Select similar 1.6.0.0 (04.03.2022)

    New
    Added multileader processing by the "Text content" property.

    2021 Year

    AutoCAD: Select similar 1.5.0.0 (31.05.2021)

    New
    Added dimension processing by "Measurement", "Text override" and "Text rotation" properties.

    2020 Year

    AutoCAD: Select similar 1.4.0.0 (27.03.2020)

    Added support for AutoCAD 2021.

    2018 Year

    AutoCAD: Select similar 1.3.0.0 (03.11.2018)

    ModPlusStyle styling.
    Replacement of main function icons adding icons for dark themes the AutoCAD ribbon.

    2017 Year

    AutoCAD: Select similar 1.0.3.5 (19.09.2017)

    Fixed a bug leading to overwriting settings when AutoCAD initialized.

    AutoCAD: Select similar 1.0.3.2 (13.04.2017)

    Added option for single line of text analogues on the length of the string.
    Fixed bug removing the backlight when the cancellation of the team's work.
    Added option (in settings) "to Add the samples in the resulting set (the choice on the model selected)".

    2015 Year

    AutoCAD: Select similar 1.0.1.1 (17.04.2015)

    Added option comparison a single-line text height.
    Corrected the function icon in the ribbon, and the Configurator is displayed normally.
