Copy crop extents

Icon

Related news and articles

• New plugin for Revit. Sheets export

Using

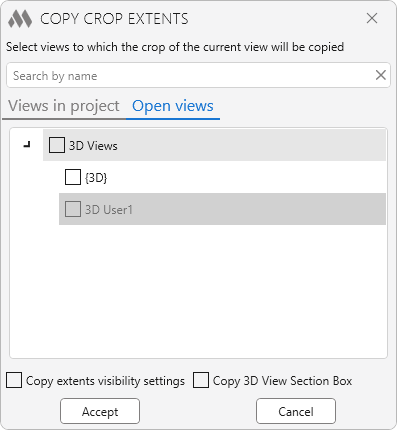

When you start the plugin, the window for selecting views appears, to which you can copy the crop extents from the current active view:

•  Views in project – contains a full list of views to which crop boundaries can be copied.
•  Open views – displays the views currently open in the document, to which crop boundaries can be copied.

At the top of the plugin window, there is a search field for quick view name filtering (case-insensitive).

For flat views (floor plan, section, etc.) the selection tree will contain only those views that have the same view direction as the current active view. If the current view is a three-dimensional view, all three-dimensional views will be in the views tree.

The plugin does not work with views that have a Scope Box assigned.If the source view has a Scope Box, a warning appears stating that crop copying is not possible. If target views have a Scope Box enabled, they are not displayed in the plugin’s selection tree.

Copy extents visibility settings – Set the same values for "Crop View", "Crop Region Visible", and "Annotation Crop" parameters as on the currently active view.

Copy grid cropping – when copying grid cropping the view crop region is disalabled and all view breaks are removed.

Copy 3D View Section Box – additional copying of boundaries for 3D views.

Accept – performs copying of crop extents in the checked views.

Cancel – cancel the work of the plugin.
