Fix duplicates

12165

Fix duplicates

It's a free plugin!

  • Automate the fix for duplicate families or types

    Icon

    32x32px 16x16px dark 32x32px dark 16x16px

    Description

    Plugin allows you to copy types from duplicate families to the main families, copy the values of the parameters of types, update instances of families, and also delete duplicate families. Plugin allows you to replace duplicate types of families and delete the replaced types


    Related news and articles


    Using

    Fix families duplicates

    1

    The upper part of the window contains a tree of families grouped by category. Each item contains two families: the duplicate family (on the left) and the main family (on the right). At startup, the plugin searches for duplicate families by the standard mask - "FamilyNameN" (where N is an integer).

    plus circle outline - adding a pair of families to the processing list if duplicate families do not fall into the list using the standard search mask.

    Use the following window to add a new pair of families:

    2

    The left part of the window is filled with families grouped by category. Families are displayed in the tree only if the category has at least two families. Also in the list are no families that are already used in the main plugin window. After choosing a duplicate family in the left part on the right, a list of other families will be filled from which you should select the main family.


    At the bottom of the main plugin window, specify options for processing:

    Copy types - new types will be created in the main family that are present and checked in the duplicate family and are absent in the main family

    Replace family instances - duplicate family instances of checked types will be replaced with instances of the main family with the same type set. If an instance of the main family does not have the required type, the duplicate family instance will be skipped. When this option is enabled, additional options for replacing family instances become available:

    • Set family type from source family - the instances of the duplicate family are set to the types from the main family, which are selected in the dropdown list
    • Copy parameter values of replaced family instance - the instance parameters values will be copied from the replaced duplicate family to the replacement main family
    • Delete duplicate families - duplicate families that do not have instances in the model will be deleted.

    Run - execution of all specified options for families whose sizes are marked in the list.

    Fix family types duplicates

    4

    The upper part of the window contains a tree of families, grouped by category. A list of types is displayed for each family. On the right side of the list, there is a drop-down list for choosing a replacement type. If the standard type is not selected in the list, then replacement will not be performed.

    plus circle outline - adding families to the processing list if duplicate family types do not appear in the list using the standard search mask.

    To select the added families, use the window in which you need to tick the required families:

    5

    At the bottom of the main plugin window, specify options for processing:

    Remove replaced types from family - all types of families for which a replacement type is specified will be removed from the family without checking their use in the model.

    Run - replacement of types with the specified options.

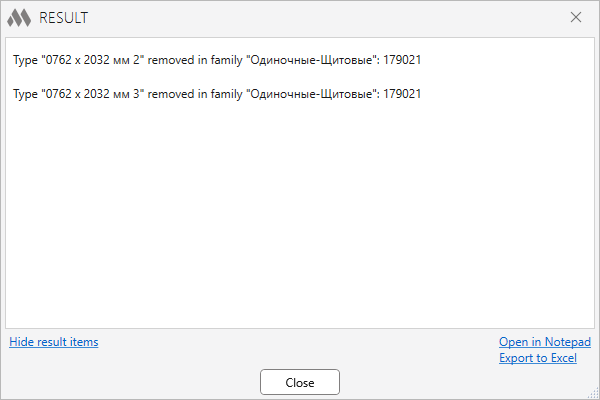

    After the replacement of types is done, the window with the results of the replacement will be displayed:

    3

  • Change history for
    Year

    2023 Year

    Revit: Fix families duplicates 1.4.6.0 (04.05.2023)

    Improved
    Improved algorithm for comparing family names when searching for possible duplicates.

    Revit: Fix families duplicates 1.4.5.0 (31.03.2023)

    Improved
    Copying of numeric and string parameter values when creating a new type in the target family.

    Revit: Fix families duplicates 1.4.4.0 (01.03.2023)

    Fix
    Fixed the height of rows in lists in the "Fix family types duplicates" tab.

    Revit: Fix families duplicates 1.4.3.0 (15.01.2023)

    Improved
    Changed icons.
    Improved
    Added command access settings on the ribbon.

    2022 Year

    Revit: Fix families duplicates 1.4.1.0 (05.08.2022)

    Improved
    Removed automatic type substitution in the "Fix family types duplicates" tab.

    Revit: Fix families duplicates 1.4.0.0 (16.06.2022)

    New
    Removed option to copy the values of the type parameters.

    Revit: Fix families duplicates 1.3.6.0 (15.06.2022)

    Improved
    The description of the checkboxes is moved from the tooltips to the plugin window.
    Improved
    Added dropdown lists for specifying replacement types.
    Improved
    Correct handling of parameters of families that are proxy elements of nested family types.

    2020 Year

    Revit: Fix families duplicates 1.3.3.0 (28.11.2020)

    New
    Added the ability to replace duplicate types of families.
    Improved
    Fixed some bugs.

    Revit: Fix families duplicates 1.2.1.0 (23.01.2020)

    Added explanatory message in select pair of families.

    Revit: Fix families duplicates 1.2.0.0 (11.01.2020)

    Added copy parameter values of type ElementId when copy parameter values from instance of the replaced family.
    Added ability to set for instances of duplicate families type from the source family.

    2019 Year

    Revit: Fix families duplicates 1.0.8.0 (29.08.2019)

    Changes in the algorithm of copying of parameters of the instance model families.
    The possibility of concurrent selection of equal types of different family duplicates that belong to the main family.

    Revit: Fix families duplicates 1.0.6.0 (27.08.2019)

    Added the ability to copy the parameter values of instances of families.
    Improved responsiveness of the interface when displaying progress.

    Revit: Fix families duplicates 1.0.4.0 (21.08.2019)

    Fixed output of empty list of errors that occurred when the function work.
    Fixed error "The given key was not present in the dictionary" when replace instances of families.
    Added additional check for a match type parameters in search of similar families (duplicates).

    Revit: Fix families duplicates 1.0.1.0 (18.08.2019)

    Excluded from the computation of the family, which is a Generic model.
