Elements join

It's a free plugin!

  • Apply to manage adjoining of walls and beams, and also join and cut elements

    Icon

    32x32px 16x16px dark 32x32px dark 16x16px

    Related news and articles


    Using

    The features of the plugin are divided into tabs:

    Adjoining

    1

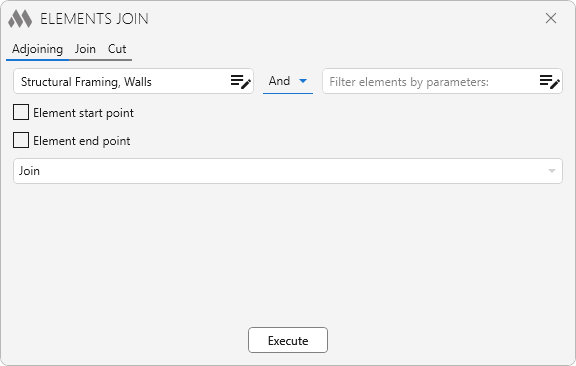

    Batch management of end adjacencies.

    It is necessary to select the categories of elements for which you want to change the end adjacencies using the elements filter by category.

    For a more accurate selection of elements, it is possible to use the element filter by parameters.

    Next, it is necessary to check the checkboxes indicating which end of the elements to process and select the processing mode from the drop-down list – Join, Disjoin or Invert

    When you click the Execute button, a dialog box appears with options for selecting the elements to process – to process the Selected elements, to process all elements In active view, or to process all elements In project.

    JOIN

    2

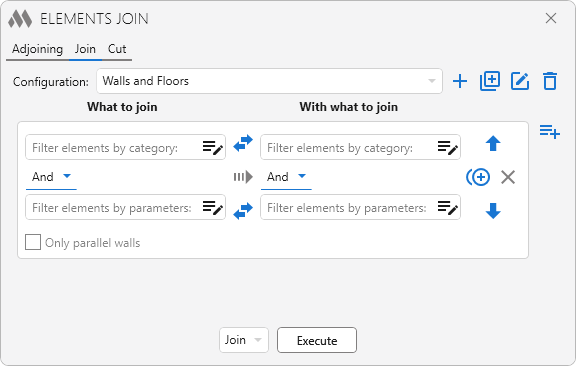

    Batch join or detach elements.

    At the top there is a drop-down list with configurations. The default configuration cannot be deleted. To the right of the list there are the configuration control buttons:

    plus – add a new user configuration
    plus circle multiple outline – duplicate configuration
    plus circle multiple outline – edit configuration name
    arrow down bold – delete the selected user configuration.

    Below there is the field with the rules of elements processing. The position of rules in the list influences the order of processing of elements by these rules. To the right of the list of rules there are control buttons:

    playlist plus – add a new rule
    arrow up bold – move selected rule up
    plus circle multiple outline – duplicate rule
    arrow down bold – move the selected rule down
    close (gray) – delete rule

    In each rule you must use the filter elements to set the category of elements, the parameters are set if necessary. On the left you select a category of elements to be joined, and on the right you select one or more categories of elements from which the joined element (elements to be joined) will be cut out.

    Using the swap horizontal bold button, you can swap both the filters elements  by category and the filters elements by parameter.

    Оnly parallel walls – the option is available only if the "Walls" category is selected on the left and on the right. With this option it is possible to connect finishing walls to the main walls.

    In case the elements are already joined, the plugin will change the order in which they are joined.

    Below the list of rules select in the drop-down list what action you want to apply to the elements – to Join or to Disjoin.

    When you click the Execute button, a dialog box appears with options for selecting the elements to process – to process the Selected elements, to process all elements In active view, or to process all elements In project.

    For example, you need to join the walls of mark W-1 to the floor. Create a new configuration:

    3

    Add the rule of elements processing:

    4

    In the left field of the filter elements by category select "Walls":

    5

    In the right field of the filter elements by category select "Floors":

    6

    In the left field of the filter elements by parameter, create a simple condition:

    7

    In the left field select the instance parameter "Mark":

    8

    In the right field enter the value of the parameter "W-1":

    9

    Click the Accept button. And then click Execute in the main window:

    10

    CUT

    11

    Batch cut or cancel cut elements.

    At the top there is a drop-down list with configurations. The default configuration cannot be deleted. To the right of the list there are the configuration control buttons:

    plus – add a new user configuration
    plus circle multiple outline – duplicate configuration
    plus circle multiple outline – edit configuration name
    arrow down bold – delete the selected user configuration.

    Below there is the field with the rules of elements processing. The position of rules in the list influences the order of processing of elements by these rules. To the right of the list of rules there are control buttons:

    playlist plus – add a new rule
    arrow up bold – move selected rule up
    plus circle multiple outline – duplicate rule
    arrow down bold – move the selected rule down
    close (gray) – delete rule.

    In each rule you must use the filter elements to set the category of elements, the parameters are set if necessary. On the left you select the category of elements to be cut, and on the right you select one or more categories of elements from which the element will be cut.

    Using the swap horizontal bold button, you can swap both the filters elements  by parameter.

    Below the list of rules select in the drop-down list what action you want to apply to the elements - to Cut or to Cancel cut.

    When you click the Execute button, a dialog box appears with options for selecting the elements to process – to process the Selected elements, to process all elements In active view, or to process all elements In project.

  • Change history for
    Year

    2024 Year

    Revit: Elements join 1.14.6.0 (03.12.2024)

    Improved
    Added the category "Toposolid" (Revit 2023 and above) to the list of categories on the Cut and Join tabs.
    Improved
    Some icons have been replaced.

    Revit: Elements join 1.14.4.0 (02.10.2024)

    Improved
    The category “Windows” has been added to the list of categories to cut out.

    Revit: Elements join 1.14.3.0 (16.08.2024)

    Improved
    The category “Rebar” has been added to the list of categories to cut out.

    Revit: Elements join 1.14.2.0 (08.08.2024)

    Improved
    Unpacking groups and assemblies during preselection processing.

    Revit: Elements join 1.14.1.0 (01.08.2024)

    Improved
    Added processing of preselected elements.

    Revit: Elements join 1.14.0.0 (17.04.2024)

    Fix
    Fixed data loading error when selecting a configuration file if organization settings are used.

    Revit: Elements join 1.13.7.0 (05.04.2024)

    New
    Added sorting of configurations.
    Fix
    Fixed a bug where in some cases a message would appear that nothing had been processed.
    Fix
    Fixed a bug where multiple copies of the plugin window could be launched.

    2023 Year

    Revit: Elements join 1.12.5.0 (10.11.2023)

    Improved
    Using the ModPlus.Xaml.Behaviors.Wpf.dll library instead of Microsoft.Xaml.Behaviors.dll to resolve compatibility issues with other plugins.

    Revit: Elements join 1.12.4.0 (29.06.2023)

    Improved
    The "Floors" category has been added to the list of allowable "What to cut" categories on the "Cut" tab.

    Revit: Elements join 1.12.3.0 (08.06.2023)

    Improved
    The "Curtain wall panel" category was added to the "Join" tab.

    Revit: Elements join 1.12.2.0 (24.05.2023)

    Improved
    The "Structural foundation" category has been added to the list of allowable "What to cut" categories on the "Cut" tab.

    Revit: Elements join 1.12.1.0 (02.05.2023)

    Fix
    Removed the "Reference planes" category. Fixed some bugs.

    Revit: Elements join 1.12.0.0 (02.05.2023)

    New
    In the "Cut" tab added categories "Reference planes" and "Roofs".

    Revit: Elements join 1.11.8.0 (12.04.2023)

    New
    Added ability to cut solid elements.
    Improved
    Added a summary message if no elements are selected.
    Improved
    Manual selection of elements to cut at one time.

    Revit: Elements join 1.10.6.0 (27.03.2023)

    Improved
    Changes were made in the work with the organization settings file.

    Revit: Elements join 1.10.5.0 (16.02.2023)

    New
    Changed the list of categories in the "Cut" tab.
    Improved
    Added titles for pairs of processed elements on the " Join" and "Cut" tabs.
    Improved
    Skipping elements without geometry when the " Join" function works.

    Revit: Elements join 1.9.4.0 (11.02.2023)

    Fix
    Fixed "Method not found" error that occurs after updating working libraries to version 14.2.1.

    Revit: Elements join 1.9.3.0 (07.02.2023)

    Improved
    Save the selected configuration.

    2022 Year

    Revit: Elements join 1.9.2.0 (13.12.2022)

    New
    Added ability to duplicate configurations and rules.
    Improved
    Changed icons.
    Improved
    Added command access settings on the ribbon.

    Revit: Elements join 1.8.0.0 (08.11.2022)

    New
    Added support for Organization Settings.

    Revit: Elements join 1.7.3.0 (14.09.2022)

    New
    Added "Slab Edges" category to the category list on the "Join" tab.
    New
    Added " Slab Edges " and "Structural Foundations" categories to the category list in the "Cut" tab.

    Revit: Elements join 1.7.2.0 (02.08.2022)

    New
    Added "Walls", " Floors" categories to the list of categories in the "Cut" tab.

    Revit: Elements join 1.7.1.0 (01.08.2022)

    New
    Added ability to swap filters by category and filters by parameters.
    Fix
    The "Cut" tab has been removed unnecessary buttons.

    Revit: Elements join 1.6.0.0 (18.07.2022)

    New
    Using the "Elements filter" tool to filter elements.
    New
    Added "Only parallel walls " option to the "Join" tab.
    New
    Added OST_StructConnections category.

    Revit: Elements join 1.3.9.0 (22.04.2022)

    New
    The "Data Devices" category has been added to the list of categories on the "Cut" tab.

    Revit: Elements join 1.3.8.0 (17.01.2022)

    New
    The plugin window is made non-modal (not blocking Revit).

    2021 Year

    Revit: Elements join 1.2.8.0 (27.11.2021)

    New
    Added an option to cancel a cut.
    Improved
    Added the ability to connect elements by height.

    Revit: Elements join 1.1.7.0 (24.11.2021)

    Improved
    Categories added to the "Cut" tab: Electrical Equipment, Mechanical Equipment, Special Equipment, Plumbing Fixtures.
    Improved
    Ignoring an error that occurs if the user interrupts the selection.
    Fix
    Fixed elements selection logic - now you have to select elements once.

    Revit: Elements join 1.1.4.0 (24.11.2021)

    New
    Added feature to cut elements.
    Improved
    Added saving of the selected tab.
    Improved
    Categories are made unselectable by default.
    Improved
    Added "Roofs" category.

    Revit: Elements join 1.0.1.0 (21.11.2021)

    Improved
    Added sending plugin launch statistics.
