Dimensions by line

116
Dimensions by line

Attention! The plugin is purchased for the specified version of the Autodesk product!

To use the purchased license, use the Personal account of the ModPlus software installed on Your computer
Old price: 0.00 USD
6.00 USD

Subscription - your best choice. Find out why!
  • Placing dimensions along a specified line or arc
    {changehistorympDimByLine{/changehistory}

    Call options

    • ModPlus floating menu or palette
    • AutoCAD ribbon
    • Command line: _mpDimByLine

    Icon

    32x32px 16x16px dark 32x32px dark 16x16px

    Related news and articles

    USING

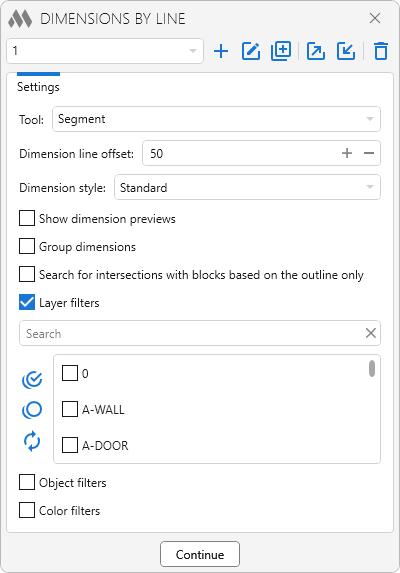

    To begin working with the plugin, create a dimension configuration by clicking plus. Created configurations can be duplicated plus box multiple outline, renamed square edit outline, exported export, imported import, and deleted delete outline using the corresponding buttons.

    The dimension creation settings are located below:

    Tool – defines the method used to create the dimension line. The following options are available:

    • Line – creates a linear dimension
    • Arc – creates an arc dimension

    Dimension line offset – specifies the distance between the dimension line and the objects.

    Dimension style – specifies the style of the created dimensions.

    Show dimension previews – displays a preview of the dimensions before they are created.

    Group dimensions – combines consecutive identical dimensions into a single dimension text indicating the number of repetitions.

    Search for intersections with blocks based on the outline only – when enabled, intersections are detected only by the block outline without considering the objects contained within the block.

    Layer filter and Color filter can be used to refine object selection. The Object filter allows dimensions to be created only for the object types selected in the list. Each filter includes a search box for quickly finding items in the list and buttons to select all items checkbox multiple marked circle outline, clear the selection checkbox multiple blank circle outline, and invert the selection cached.

    Depending on the selected dimension line creation method, after clicking the Continue button, the following prompts are displayed:

    • Line:

    Specify first point – specifies the first point of the reference line.

    Specify next point – specifies the second point of the reference line.

    • Arc:

    Specify center point of arc – specifies the center point for the reference arc.

    Specify start point of arc – specifies the start point of the reference arc.

    Specify next point – specifies the end point of the reference arc.

    The plugin analyzes the objects matching the specified filters and creates a dimension chain according to the selected settings.

    The plugin operates in a continuous mode, repeatedly prompting for points to create dimensions until the command is canceled by pressing Esc.
