The plugin allows you to change an element's association with the base and top levels without changing the element's position in the model.
To use the plugin, create a new configuration using the
button.
Created configurations can be duplicated
, renamed
, exported
, imported
, and deleted
using the corresponding buttons.
Each configuration consists of a list of settings. To add a setting, click to the right of the list.
Each setting consists of an element filter by categories and parameters and two level selection drop-down lists. The second list is available only for categories that have an association with a top level.
In the drop-down lists, you can select a specific level of the current document or one of the following association options:
- Nearest – associates the element with the level nearest to it by elevation, regardless of whether the level is above or below the element
- Nearest below – associates the element with the nearest level located below it
- Nearest above – associates the element with the nearest level located above it
- Do not change – leaves the element's current association with the corresponding level unchanged
- Do not associate – removes the level association for elements for which the corresponding type of association may be absent. For example, you can remove a wall's top level constraint and set its top to Unconnected without changing its position in the model.
For the Nearest, Nearest below, and Nearest above options, the element position is determined by the bottom elevation of its Bounding Box when selecting the base level and by the top elevation when selecting the top level.
When a specific level of the current document is selected, the element is associated with that level. In all cases, the element's position in the model is preserved by changing the corresponding offset from the level.
The category and parameter filter can be left empty. In this case, all elements will be processed according to the selected options, but errors may occur because not all elements have the “Base Level” property.
Only visible – when this option is enabled, only levels visible in the current view will be used for the Nearest, Nearest below, and Nearest above options.

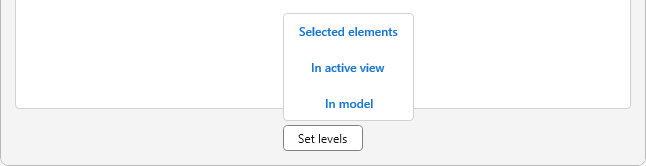

At the bottom of the window is the Set levels button, which starts the process of changing the base and top levels for the specified element selection option: Selected elements, In active view, or In model.
