Using
The plugin allows to color elements in the view by conditions (by category and/or parameters), to reset the coloring, and to add filters to the current template or view.
The plugin's dialog box:
There must be at least one working configuration for the plugin to start working. To create it, click on
and then enter the name:
The following tools are available for working with configurations:
– duplication the selected configuration;
– edit the name of the selected configuration;
,
– import and export of configurations, respectively;
– deleting the selected configuration.
To create a working configuration you need to add the conditions of its work. There are two operating modes:
- Standard condition
- By parameter values
STANDARD CONDITION
After adding the condition, it is necessary to fill in at least one of the element filters – specify the category of elements to be coloured (the left part of the condition) or the parameter by which they will be coloured (the right part of the condition).
The category and parameter in the condition are optional, so they can be used together or separately.
The filtered elements that satisfy this condition can be selected and shown in the model using the
. Using the Select elements at the bottom of the plugin window you can select and show in the model the elements that will be coloured according to all conditions of the current configuration.
The coloring area of elements can be changed by successively clicking on the corresponding button:
– coloring surfaces and lines,
– coloring only lines or
– coloring only surfaces. For surfaces you can set color, pattern and transparency, for lines – color and swatch.
Use the color palette to select the desired coloring color:
Choose a line and surface pattern from the drop-down list:
The existing condition can be duplicated
and deleted
using the corresponding buttons.
If several conditions for coloring elements are set, the individual condition can be moved in the list by dragging it with the left mouse button.
BY PARAMETER VALUES
In cases where there are a large number of values for a single parameter, you can use coloring by parameter value.
Use the elements filter
to enter categories. After you fill in the categories, the parameter filter will become available.
In the parameter filter, you can create only one condition for a single parameter. You can set multiple values for a parameter, separated by a comma.
After entering a category and parameter filter, you can get a list of values that satisfy these conditions on the Get button:
You can search for elements that satisfy the filter either from the whole project or from the current view:

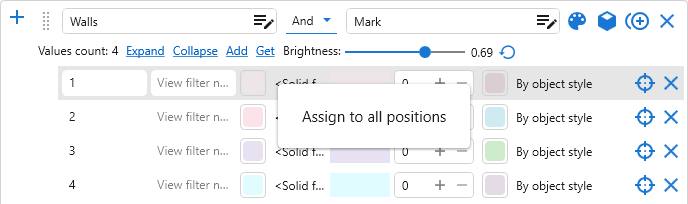

You can expand or collapse list, add a new value, or delete a value from the list using the corresponding buttons:
If you press the
button, you can set random colors for all values:
At the bottom of the window is an option for the plugin mode, where:
- Can override on the current view the coloring for elements according to the specified conditions
- Restore the (original) override in the current view
- Create View Filter - add filters to an existing view template (if one is set for the current view) or to the current view (if no template is defined for it)
It is not possible to create a view filter for all parameters. If the filter cannot be created, an error window will be displayed
When creating a view filter, the option to enable/disable the Shaded Visual style for the View (if possible) is available, as well as the ability to set the view filter name for standard conditions.
To start the plugin, click on the Execute button.
Before applying the plugin:
After applying the plugin:
-
-
Change history forYear
2024 Year
Revit: Coloring elements 3.1.9.0 (28.11.2024)
FixFixed a bug where run buttons were available after deleting all configurations.Revit: Coloring elements 3.1.8.0 (26.11.2024)
ImprovedSome icons have been replaced.ImprovedChanged order of configuration editing buttons.Revit: Coloring elements 3.1.6.0 (30.10.2024)
NewSmall UI improvements.Revit: Coloring elements 3.0.6.0 (25.09.2024)
FixFixed a bug where the contents of the switched Organization Settings configuration were not reloaded.Revit: Coloring elements 3.0.5.0 (24.09.2024)
FixFix some bugs.Revit: Coloring elements 3.0.4.0 (02.09.2024)
FixFixed resetting of some parameters when duplicating configurations.FixFixed plugin freezing in some cases when selecting a line type.Revit: Coloring elements 3.0.2.0 (29.08.2024)
FixFixed resetting of user settings when "Get" is pressed.Revit: Coloring elements 3.0.1.0 (26.08.2024)
ImprovedChanged position of some buttons.Revit: Coloring elements 3.0.0.0 (24.08.2024) Read more
NewAdded ability to specify surface pattern and transparency.NewAdded ability to specify line type.NewAdded ability to select elements by filter.NewAdded support for Organization Settings.ImprovedPlugin window made non-modal (does not block Revit window).Revit: Coloring elements 2.13.1.0 (27.02.2024)
ImprovedIgnoring positions without value when creating filters by parameter value.Revit: Coloring elements 2.13.0.0 (26.02.2024)
FixFixed an error that incorrectly created filters on parameters with data type "Double".Revit: Coloring elements 2.12.0.0 (22.02.2024)
FixFixed error of getting parameter values when using the system name or GUID of a parameter.2023 Year
Revit: Coloring elements 2.11.14.0 (11.12.2023)
FixFixed a bug where only the last condition among conditions with the same element filter was applied.Revit: Coloring elements 2.11.13.0 (08.11.2023)
ImprovedUsing the ModPlus.Xaml.Behaviors.Wpf.dll library instead of Microsoft.Xaml.Behaviors.dll to resolve compatibility issues with other plugins.Revit: Coloring elements 2.11.12.0 (10.05.2023)
NewIf the "Family name" or "Type name" parameter is specified, the values of these parameters will always be taken from the type.Revit: Coloring elements 2.10.12.0 (15.02.2023)
FixFixed "Method not found" error that occurs after updating working libraries to version 14.2.1.Revit: Coloring elements 2.10.11.0 (14.01.2023)
FixFix some bugs.2022 Year
Revit: Coloring elements 2.10.10.0 (25.12.2022)
NewAdded an option to set the coloring area - lines or surfaces.NewAdded ability to drag and drop conditions in the list.NewAdded ability to duplicate configuration.NewAdded an option to disable the setting of a Shaded Visual Style for the View when creating view filters.NewAdded the ability to set the name of the view filter in the standard conditions.ImprovedChanged icons.ImprovedAdded command access settings on the ribbon.ImprovedAdded remembering of the selected configuration.ImprovedIn the condition by parameters, when getting the parameter values, the colors of already existing values are not replaced.Revit: Coloring elements 2.5.6.0 (05.09.2022)
FixFixed a bug that prevented creating filters in a view without a template.Revit: Coloring elements 2.5.5.0 (25.06.2022)
ImprovedFor conditions by parameter values, added the ability to set the search area (model or view) when obtaining values.Revit: Coloring elements 2.5.4.0 (21.06.2022)
ImprovedAdded checks of the current view for the possibility to create or change the template.ImprovedDisplayed information about parameters that cannot be used to create filters.FixFixed some bugs.Revit: Coloring elements 2.5.1.0 (09.06.2022)
NewAdded export/import list of configurations.Revit: Coloring elements 2.4.1.0 (03.06.2022)
ImprovedColoring of projection and section lines.Revit: Coloring elements 2.4.0.0 (02.06.2022)
NewCorrect creation of filters, taking into account the type of parameter data.Revit: Coloring elements 2.3.0.0 (01.06.2022)
FixFixed an error checking the uniqueness of names of created filters.FixFixed an issue with reading text parameter values in Revit versions older than 2023.FixFixed an issue with creating filters based on parameters with non-specified values.Revit: Coloring elements 2.0.0.0 (29.05.2022) Read more
NewAdded condition "By parameter values".Revit: Coloring elements 1.0.0.0 (16.05.2022) Read more
ReleaseRelease. - Комментарии для сайта Cackle
