  • Plugin is used to automatically add a layer to the created objects

    Forum

    About files with the extension .mpif

    The file with the .mpif extension is a special installation file of the ModPlus (ModPlus Install File).
    These files allow you to install and update all ModPlus components using the auto-update module in case you do not have access to the internet or modplus.org

    CALL OPTIONS

    • ModPlus menu
    • ModPlus palette
    • AutoCAD ribbon
    • Command line: _mpLayerAuto

    ICON

    32x32px 16x16px 32x32px 16x16px

    DESCRIPTION

    Plugin processes the creation, copying, pasting and other commands when working with AutoCAD objects - dimensions, text, multileaders, hatching, tables, viewports, lines, polylines, xLines, rays, circles, ellipses, splines, arcs, blocks - and sets the layer specified in the plugin settings for them. There is an option to specify the specified layers for the selected objects. There is an opportunity to set block layers by name


    USING

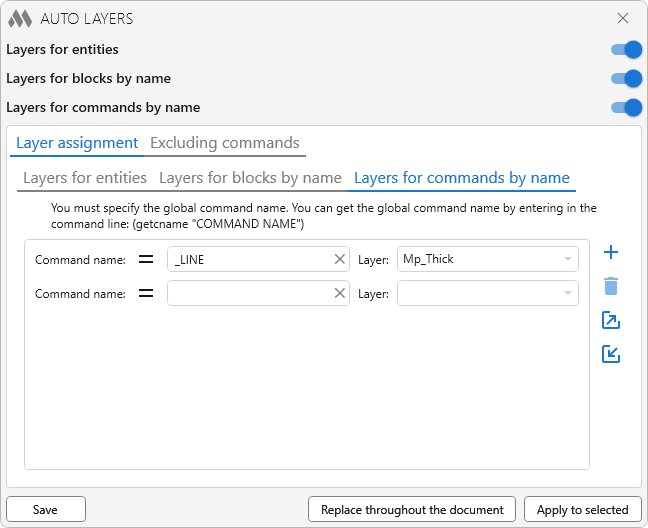

    The upper part of the window contains two switches that enable or disable the states of operation in the current document - the mode of setting layers by the type of entities and the mode of setting layers by block names.

    Important! The state of the “Layers for entities” and “Layers for blocks by name” options is saved in the drawing, not in the custom configuration file. Options must be enabled or disabled for each drawing separately.

    Below are the settings, divided into two groups – layer assignment and setting commands to exclude. The assignment of layers, in turn, is divided into layers for entities and layers for blocks by name.

    Layers for entities

    1

    This group contains layer settings for entities by their type. The lists are filled with the names of the layers contained in this drawing. When choosing "Default layer" current layer of drawing will be assigned to the entity. If the set layer is then removed from the drawing, the entity will be assigned a default layer.

    Important! Layer settings for entities by type are saved in the drawing, not in the custom configuration file. Layers must be configured separately in each drawing.

    The Load and Remember commands allow you to save or load saved layer settings in a custom configuration file.

    Layers for blocks by name

    2

    This group contains a list of rules for setting layers for blocks, depending on the names of the blocks.

    Important! Layer settings by block names are saved in a custom configuration file. All drawings have the same block layer settings.

    Note: setting a layer for a block by name has a higher priority than setting a layer for the "Block" entity type.

    For each rule in the list, you must specify a rule for checking the name match - full match or partial (the block name contains the specified value). The case is not case sensitive. The layer can be specified either by the value from the drop-down list, which is filled with the layers of the current drawing, or entered manually.



    2.1 - add a new rule
    2.2 - delete the selected rule
    2.3 - export of rules to xml file
    2.4 - import of rules from xml file. All current rules in the list will be deleted

    Excluding commands

    3

    On this tab, you can edit (add or remove) the list of commands to be excluded from processing by the plugin.

    The standard set of commands for exclusion is not editable!

    More details on the forum.


    Save - save all settings and close the window. The state of the operating modes and the settings of the layers by the type of entities are saved in the current drawing. Layer settings by block name and commands to exclude are saved in a custom configuration file.

    Apply to selected - apply all specified layer settings to selected entities.

  • 2021 Year

    AutoCAD: Auto layers 2.0.1.0 (23.03.2021)

    • Fix Fixed a bug where auto layers stopped working after switching between drawings.

    AutoCAD: Auto layers 2.0.0.0 (08.03.2021)

    • New Added the ability to set layers for blocks with specific names. Read more
    • Improved The plugin window has been redesigned. Plugin window can now be stretched.
    • Improved Optimization of the plugin code.

    2020 Year

    AutoCAD: Auto layers 1.13.4.0 (27.08.2020)

    • New Added commands "MIRROR" and "ADDSELECTED" to the standard list of commands to ignore.

    2019 Year

    AutoCAD: Auto layers 1.13.2.0 (22.09.2019)

    • Added the ability to set the layer for xlines, rays, circles, ellipses, splines, arcs,.
    • Corrected icon functions.
    • Changed function description.

    AutoCAD: Auto layers 1.7.0.0 (21.09.2019)

    • Added the ability to set a layer for lines and polylines.

    2018 Year

    AutoCAD: Auto layers 1.4.1.0 (27.07.2018)

    • Replacement of main function icons adding icons for dark themes the AutoCAD ribbon.

    AutoCAD: Auto layers 1.4.0.0 (18.03.2018)

    • Added EATTEDIT and BEDIT commands to the exclusion list.

    2016 Year

    AutoCAD: Автослои 1.3.3.0 (09.02.2016)

    • Removed the message “no document”, added early to test.
    • Fixed error reading list of commands to exception.

    AutoCAD: Автослои 1.3.0.0 (30.01.2016)

    • Changed the mechanism to function in the best stability (experimental).
    • Added the ability to set layers for the selected objects from the window function .

    AutoCAD: Автослои 1.2.2.0 (26.01.2016)

    • Added the ability to save/load settings layers.
    • Some minor changes in the code.

    2015 Year

    AutoCAD: Автослои 1.1.0.0 (08.08.2015)

    • Added the ability to edit the list of commands to exclude from the processing function.

    AutoCAD: Автослои 1.0.3.0 (21.04.2015)

    • Important critical fixes in the code.

    AutoCAD: Автослои 1.0.2.0 (17.04.2015)

    • Important critical fixes in the code.
