  • AutoCAD. Smart. Multiline leader, Polar Axis and Arrow line

AutoCAD. Smart. Multiline leader, Polar Axis and Arrow line

Written on .

1

We are pleased to present an update to the Smart plugin for AutoCAD with new smart objects and some improvements, which we will describe below:

Multiline leader

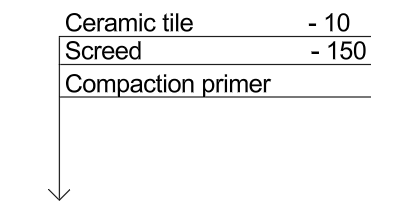

The Multiline leader (or Leader for multi-layer structures) is a smart object representing a leader with multiple shelves:

2

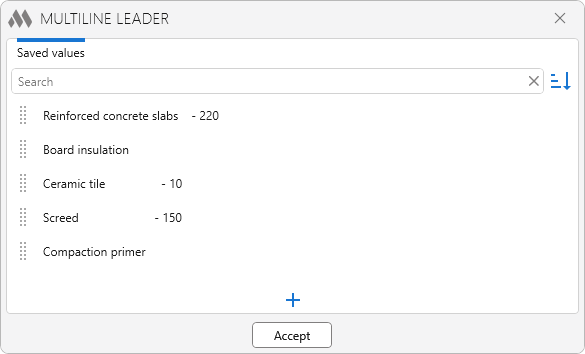

When creating or editing a leader, you can add values from local storage, for which a separate command is provided:

3

Polar Axis

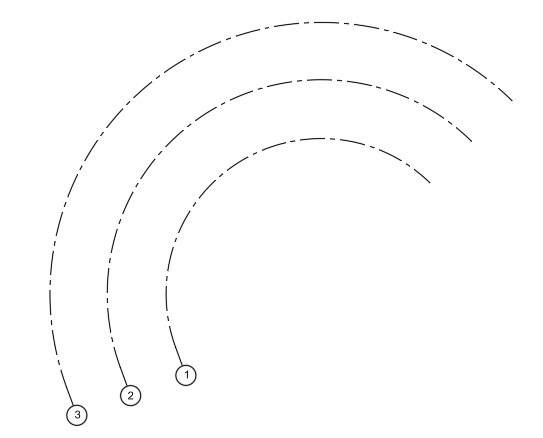

A smart object that allows you to create a polar (arc) axis:

4

Arrow line

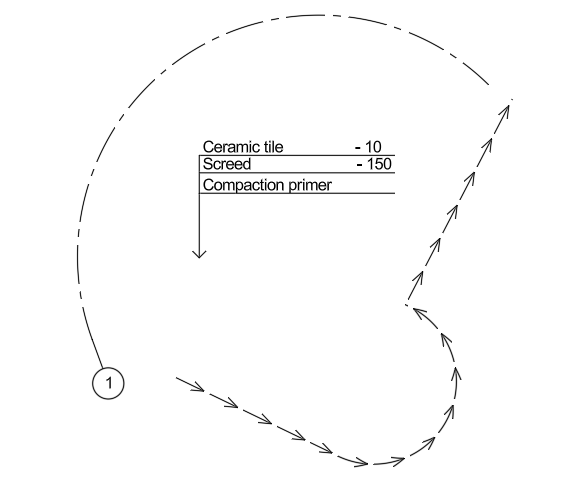

At a user request (do not forget to send us your ideas) we created a linear smart object with arrows:

5

Other

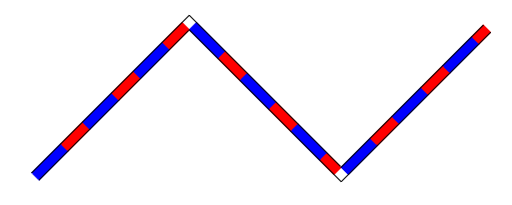

  • The "Waterproofing" smart object now includes the ability to change the color of gaps:

6

  • The "Hole filling" smart object now includes a grip for changing the hole type

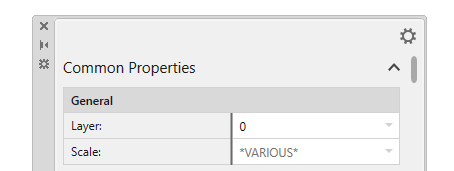

  • A "Common Properties" group has been added to the properties palette, which will display the common properties available to all selected smart objects:

7

  • Some known bugs have been fixed

Share your ideas for new smart objects in our support chat!

Enjoy working with ModPlus!
