AutoCAD. Smart. Power Line

Written on .

We continue to develop the Smart plugin in response to requests from our valued users, and today we are happy to tell you about the latest additions to the plugin

1

Power Line

We have added a new linear smart object representing a power transmission line symbol:

2

This linear smart object is included in the PRO version of the plugin!

Arrow line

The "Arrow line" linear smart object has gained a new arrow type — Simple Arrow with Tick:

3

Break Line

A "Hide background" property has been added to the "Break Line" smart object, adding a wipeout with a configurable length:

4

Multiline leader

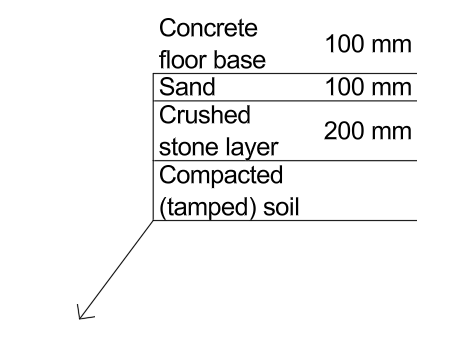

In the "Multiline leader" smart object, it is now possible to use multiline text, as well as specify the units of measurement in a separate field:

5 en

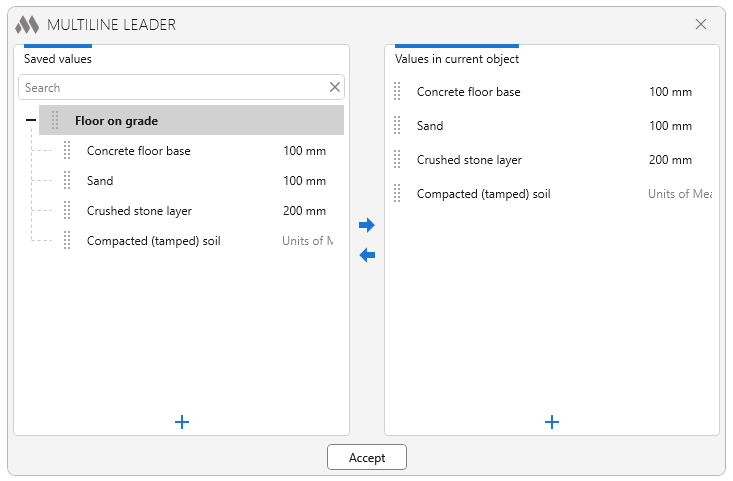

And saved values can now be grouped:

6 en

Your feedback is important and helps us develop the Smart plugin better! Join the support chat and write your suggestions!

Enjoy working with ModPlus!
